2025
Takeuchi

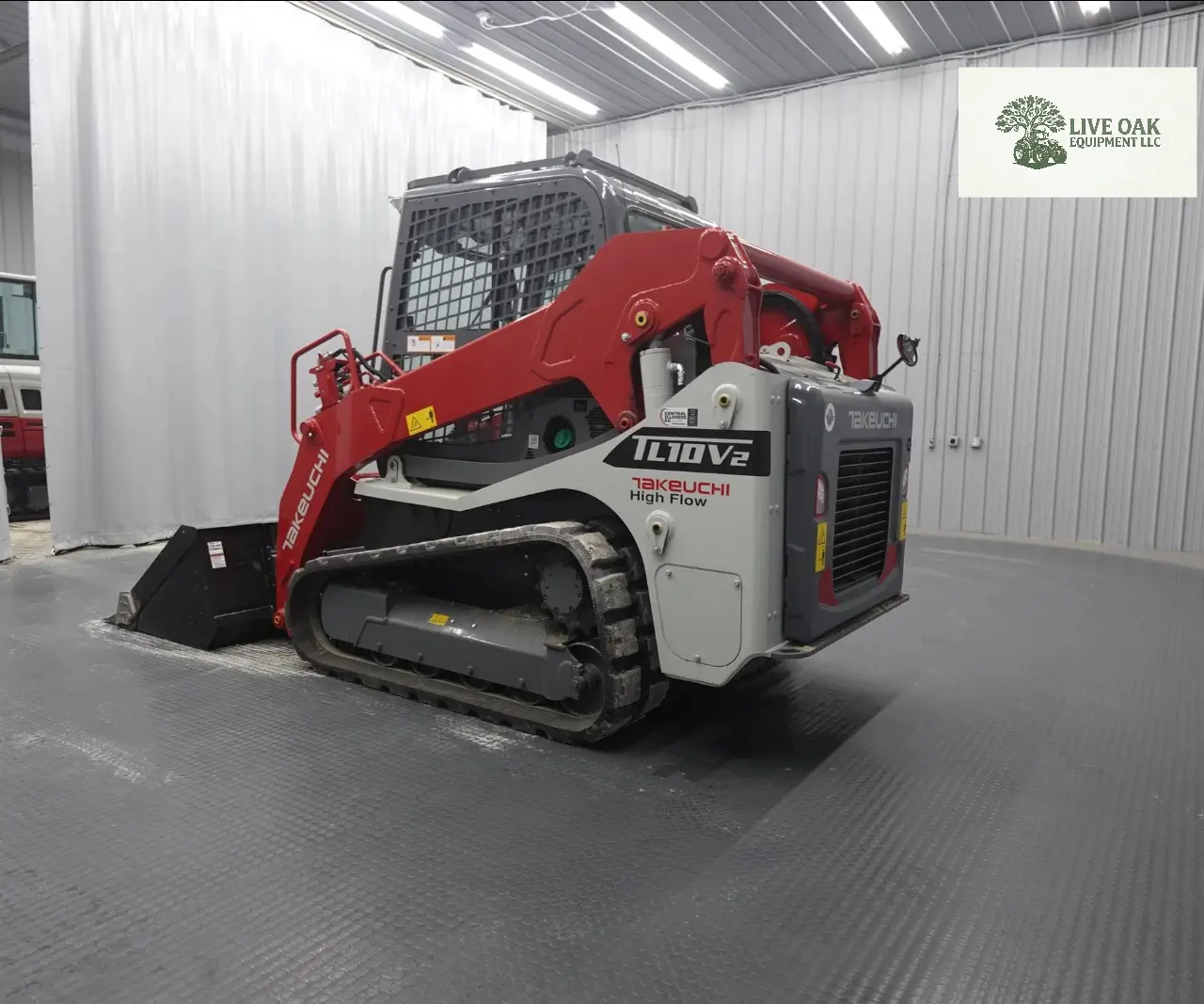

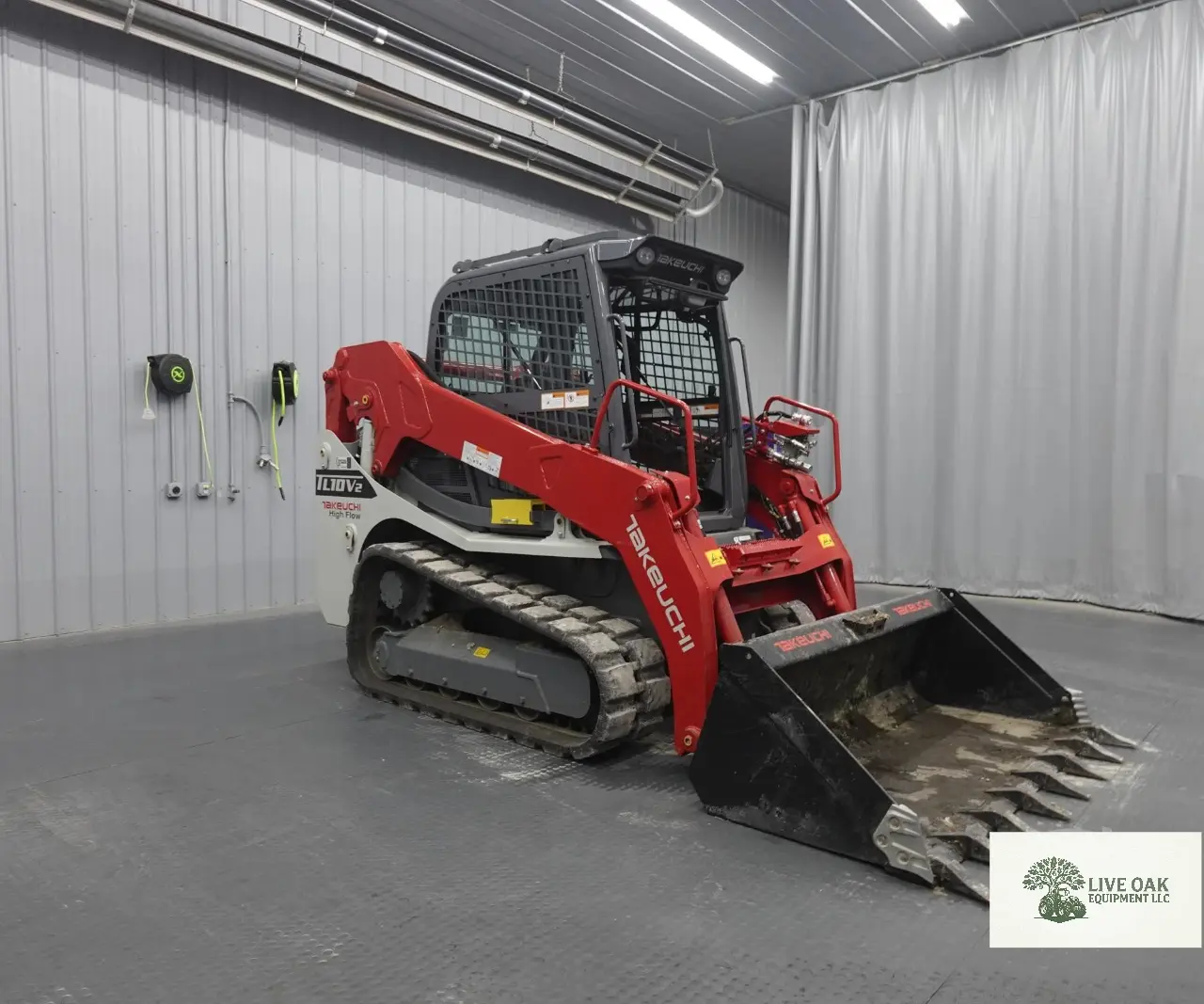

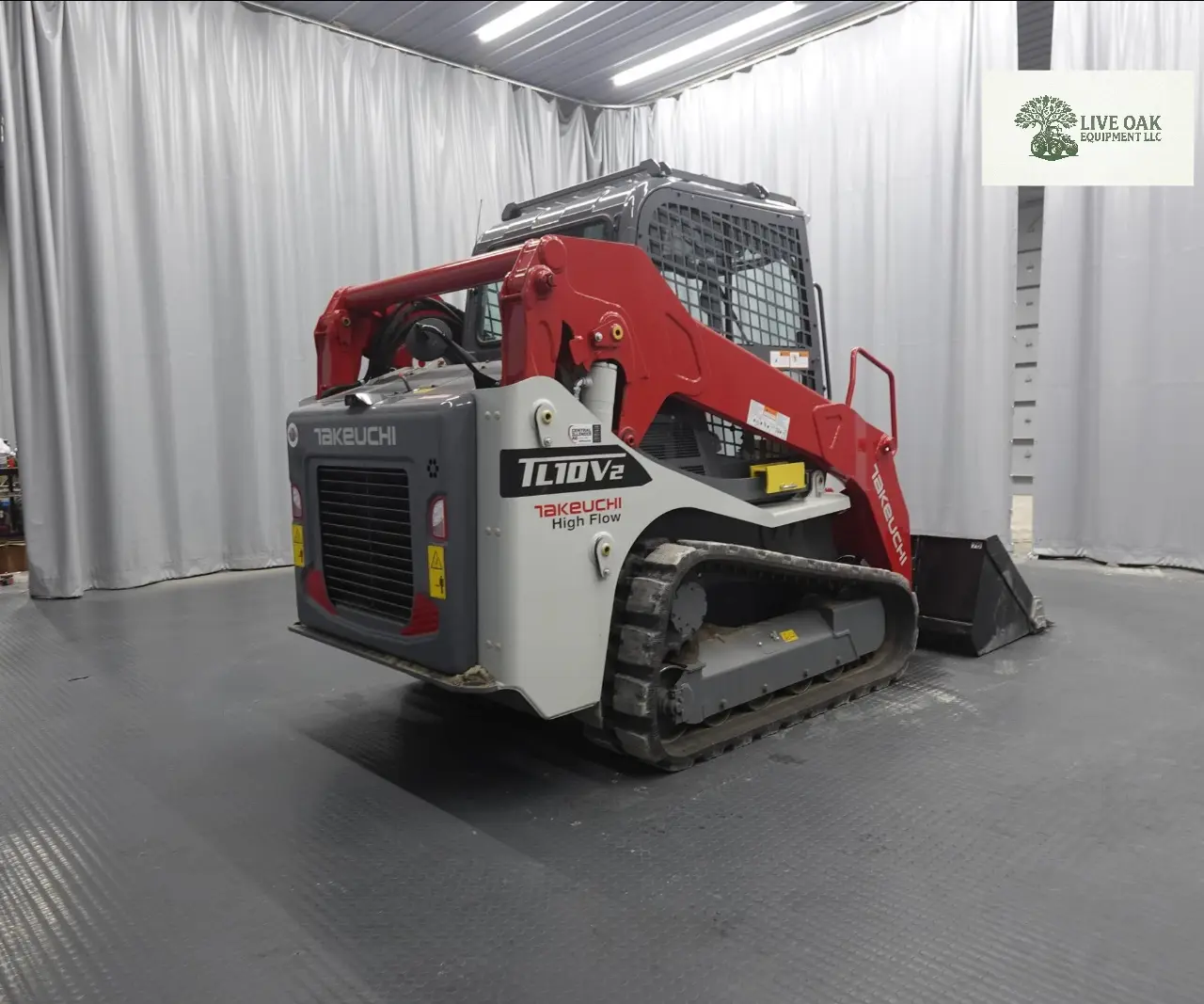

TL10V2 Skid Steer Loader
Description

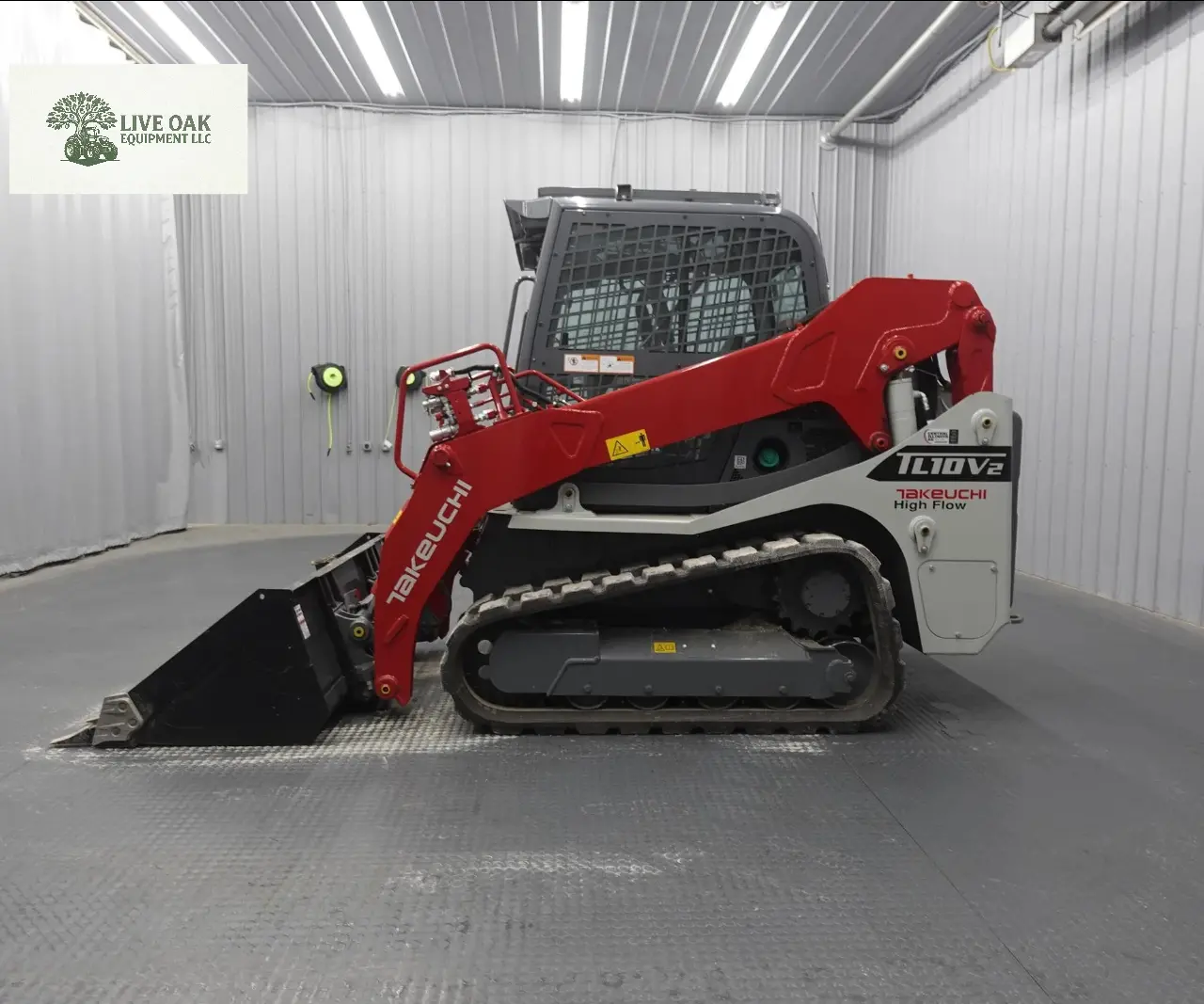

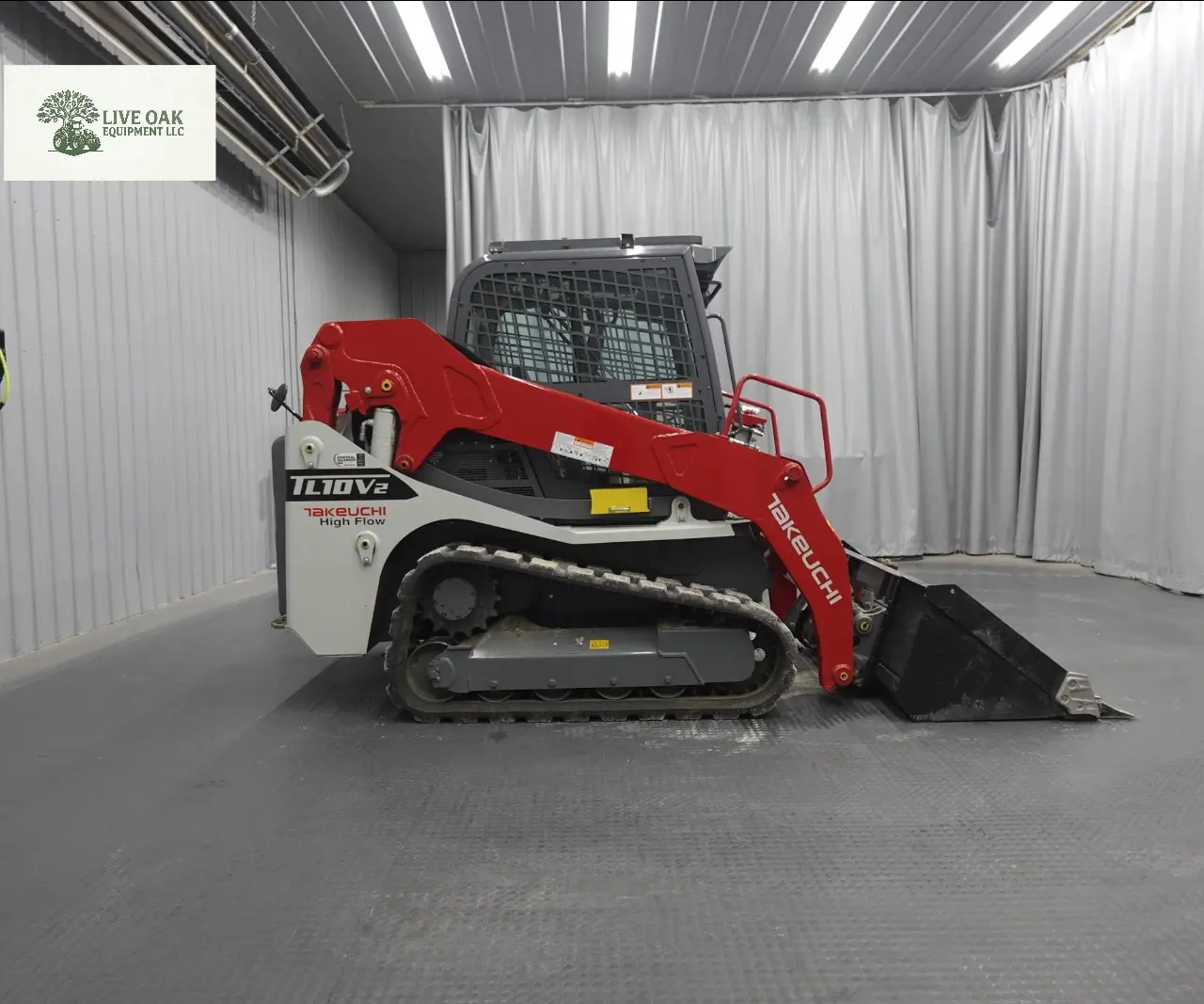

Takeuchi TL10V2 Skid Steer
Year: 2025
Manufacturer: TAKEUCHI
Model: TL10V2
Hours: 20
Serial Number: 410010790
Condition: Used

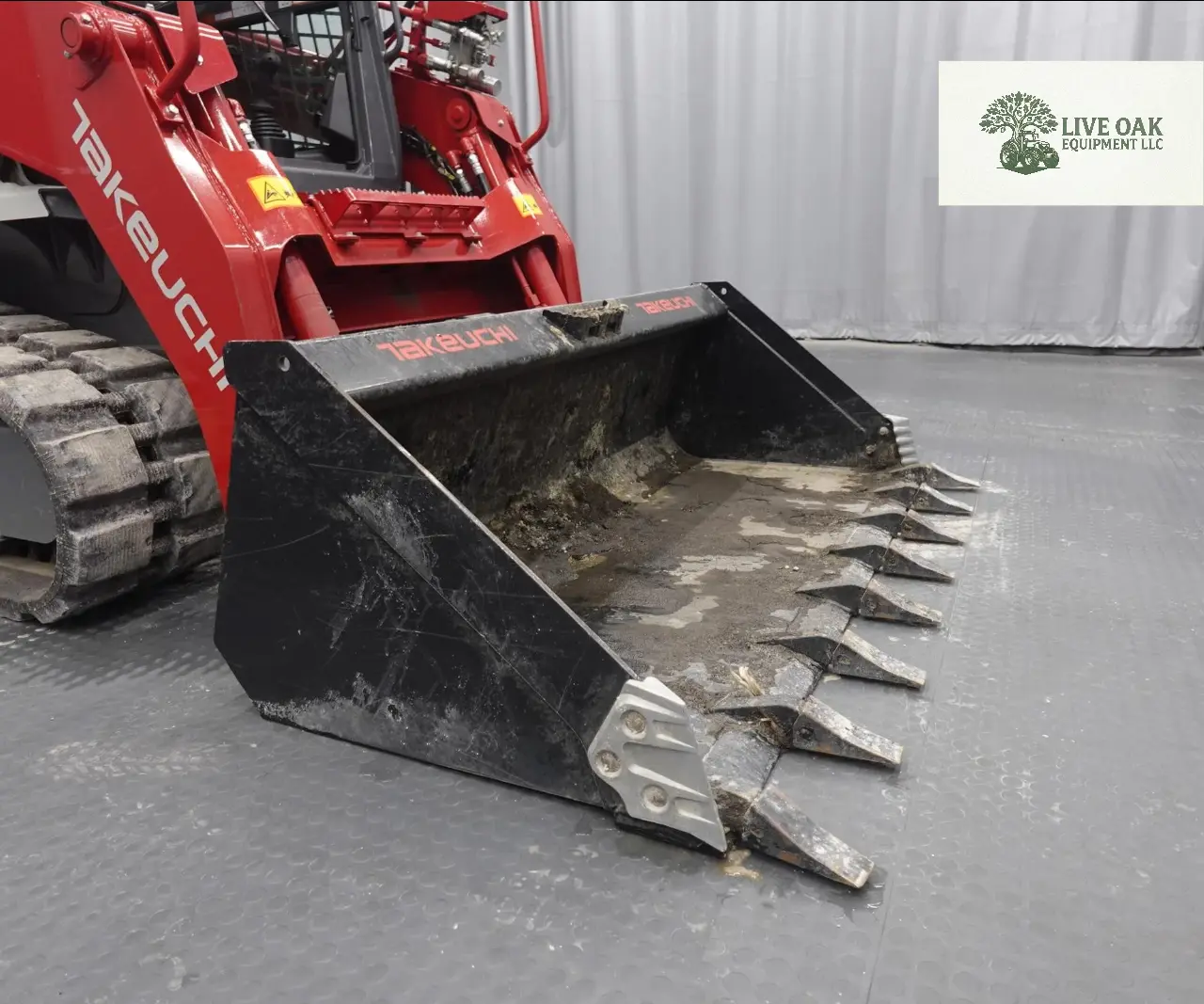

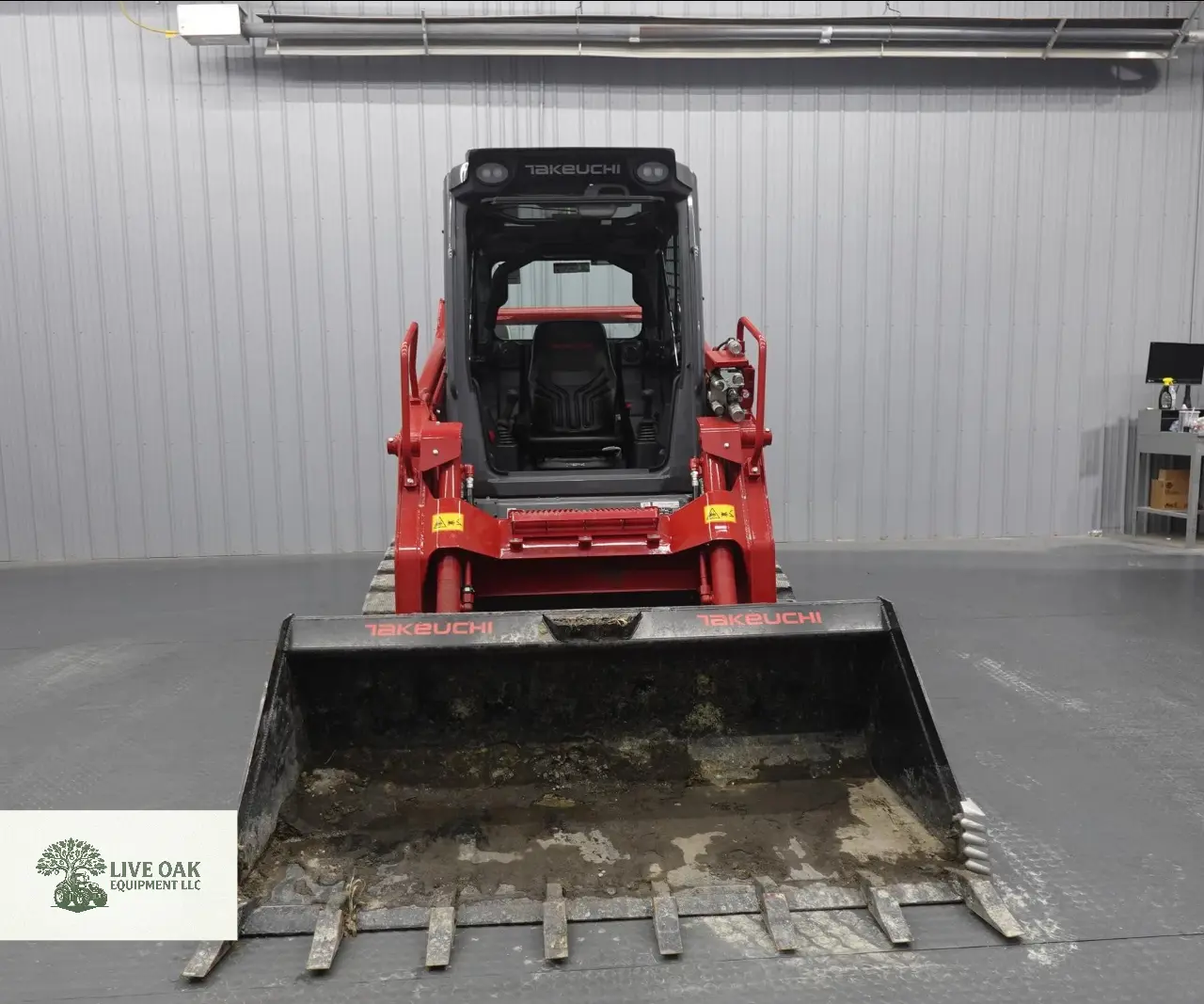

Features: Tooth Bucket, smooth bucket & Grapple.
Full Description
Options List
Category Specific
- Operating Weight – Canopy 9,950 lb (4,515 kg)
- Operating Weight – Cab 10,270 lb (4,660 kg)
- Tipping Load 7,205 lb (3,268 kg)
- Rated Operating Capacity (ISO 14397-1)@35%* 2,522 lb (1,144 kg)
- Operating Capacity w/ Opt Counterweight 2,718 lb (1,233 kg)
- Operating Load at 50% of Tipping Load 3,600 lb (1,633 kg)
- Bucket Breakout Force 6,520 lb (2,957 kg)
- Lift Arm Breakout Force 5,400 lb (2,450 kg)
- Traction Force 9,730 lb (4,413 kg)
- Ground Pressure – Canopy 4.9 psi (34.3 kPa)
- Ground Pressure – Cab 5.1 psi (35.4 kPa)
- Travel Speed – Low 4.8 mph (7.7 km/hr)
- Travel Speed – High 7.0 mph (11.3 km/hr)
- *Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
Hydraulic System
- Auxiliary Flow – Primary Circuit 18.8 gpm (71.2 Lpm)
- Auxiliary Flow – High Flow (optional) 32.8 gpm (124.0 Lpm)
- Hydraulic System Pressure 3,481 psi (21.0 MPa)
Engine
- Make / Model Kubota / V3307CR-TE4B
- Engine Displacement 203 cu in (3.3 L)
- Horsepower @ 2,600 rpm 74.3 hp (55.4 kW)
- Maximum Torque @ 1,500 rpm 195 ft-lb (265.0 Nm)
Fluid capacities
- Engine Lubrication 11.8 qt (11.2 L)
- Cooling System 15.9 qt (15.0 L)
- Fuel Tank Capacity 21.5 gal (81.0 L)
- Fuel Consumption (65% of Full Load) 2.7 gal/hr (10.3 L /hr)
- Hydraulic Reservoir Capacity 9.5 gal (36.0 L)
- Hydraulic System Capacity 17.2 gal (65.0 L)

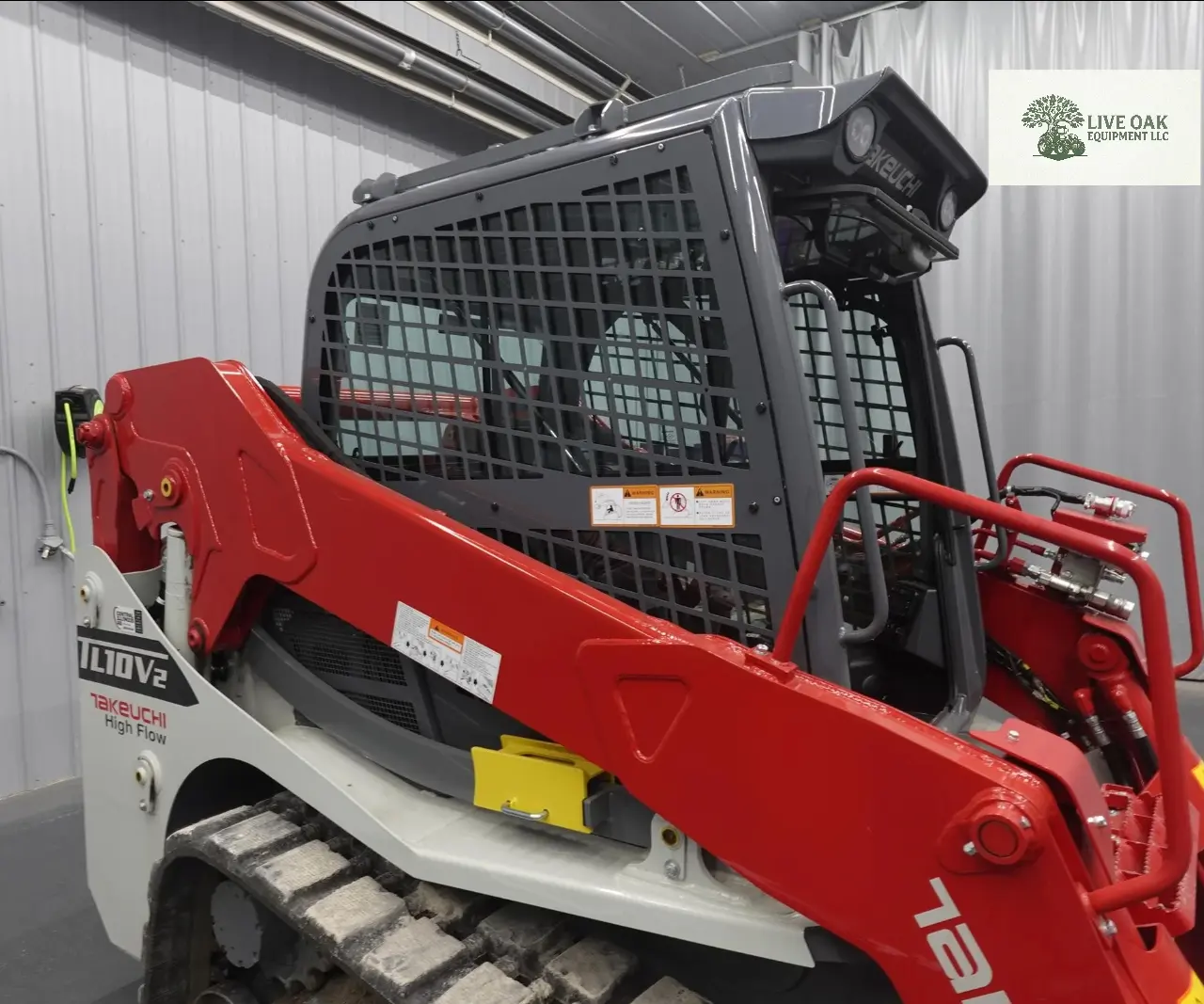

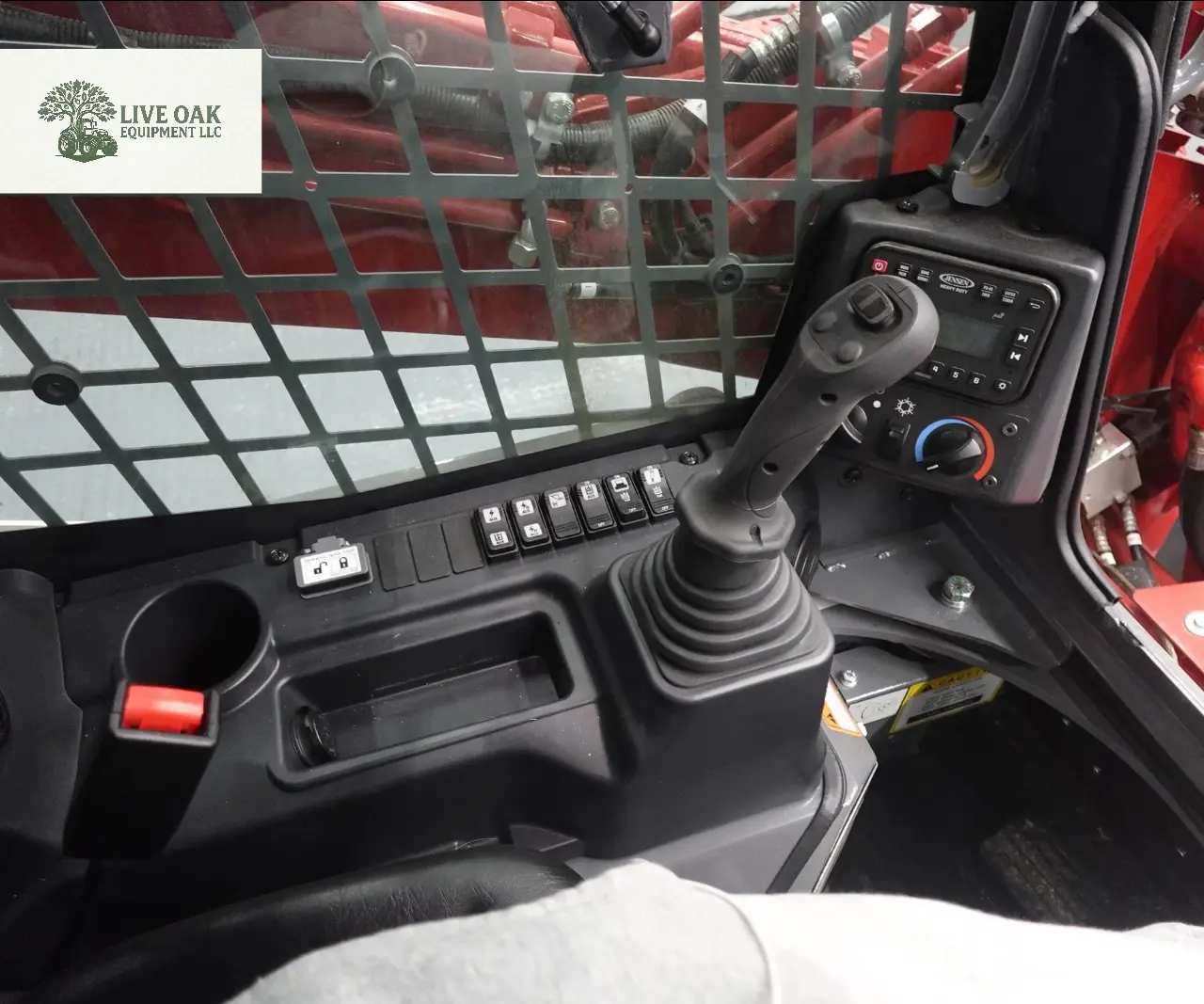

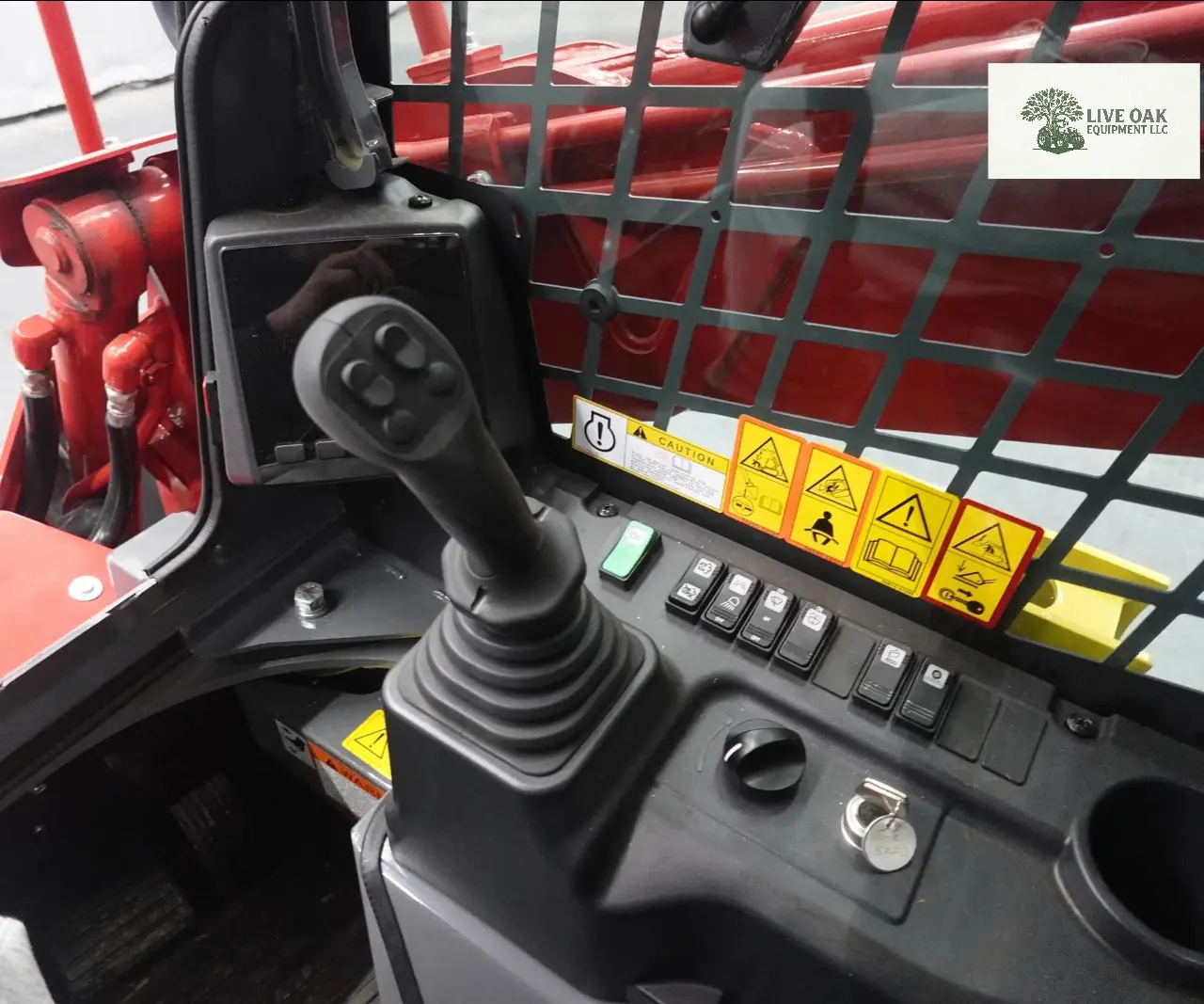

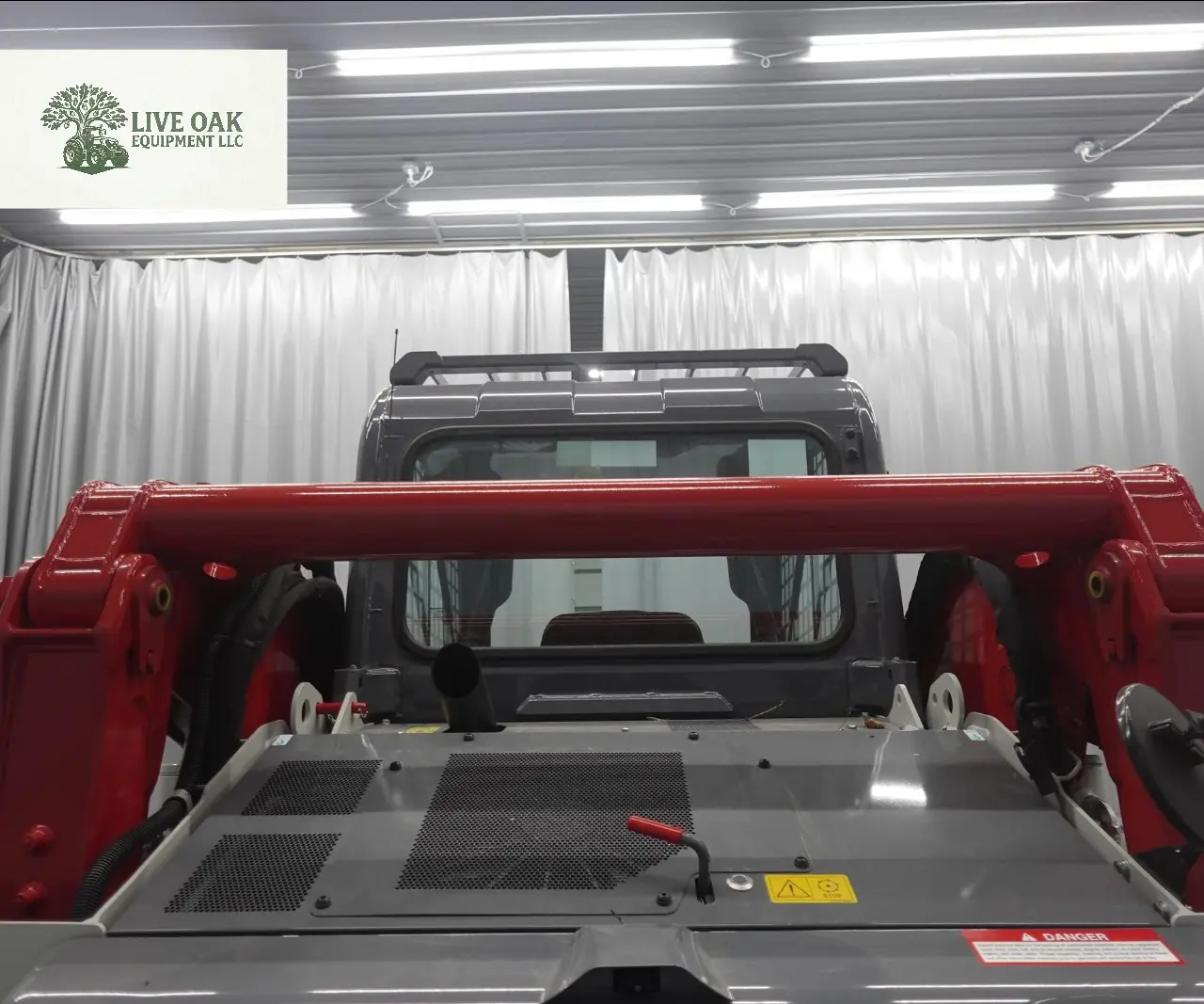

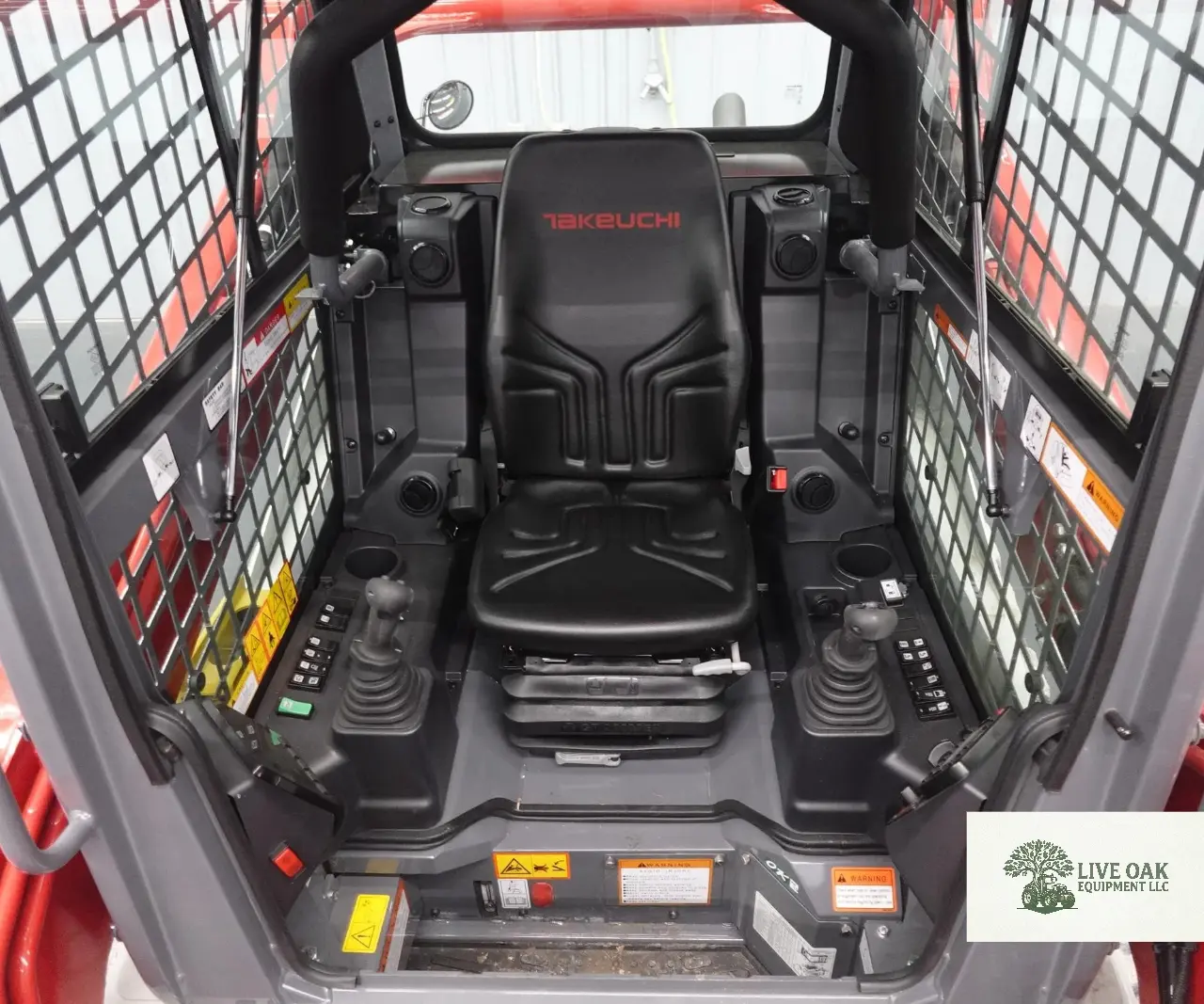

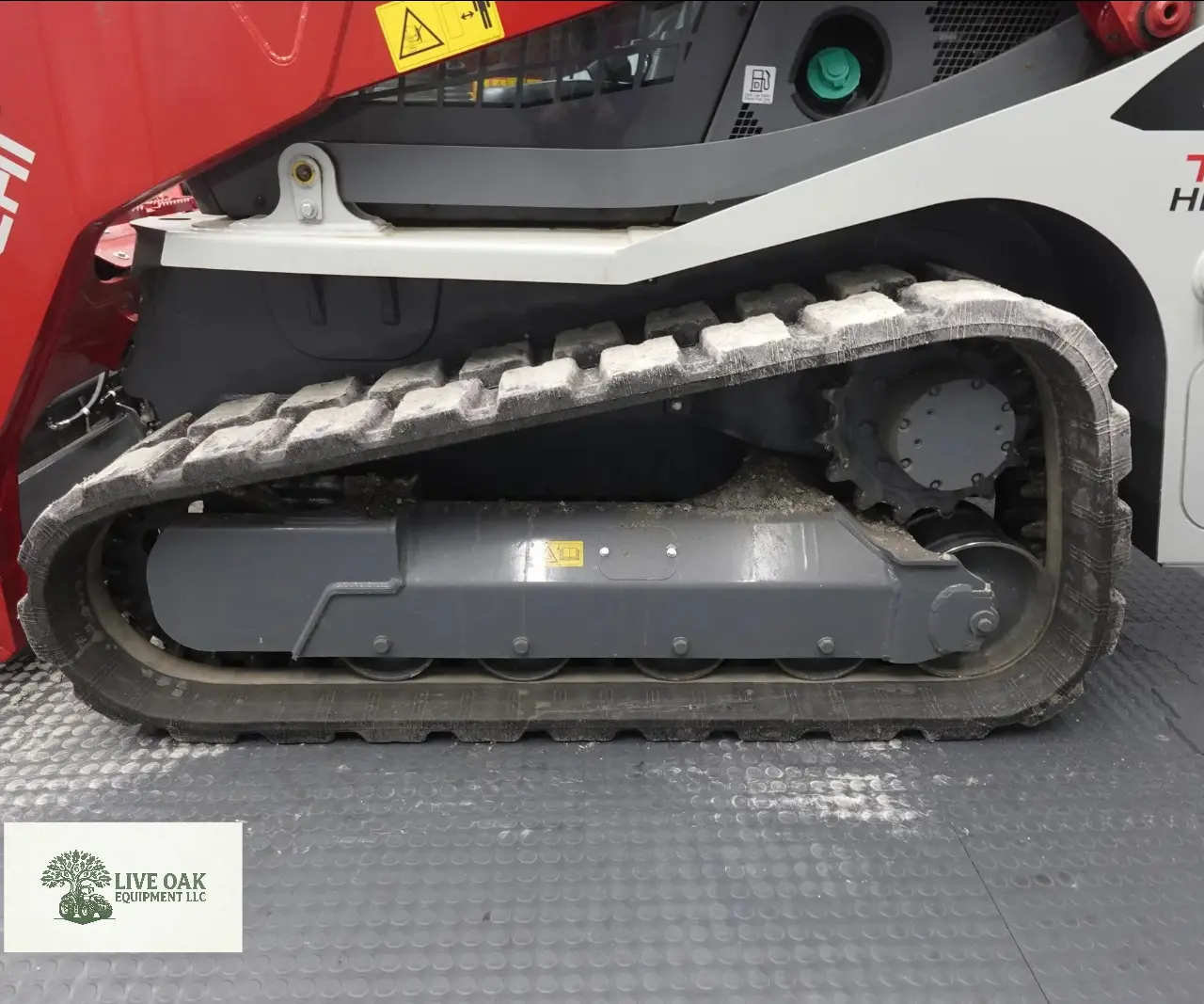

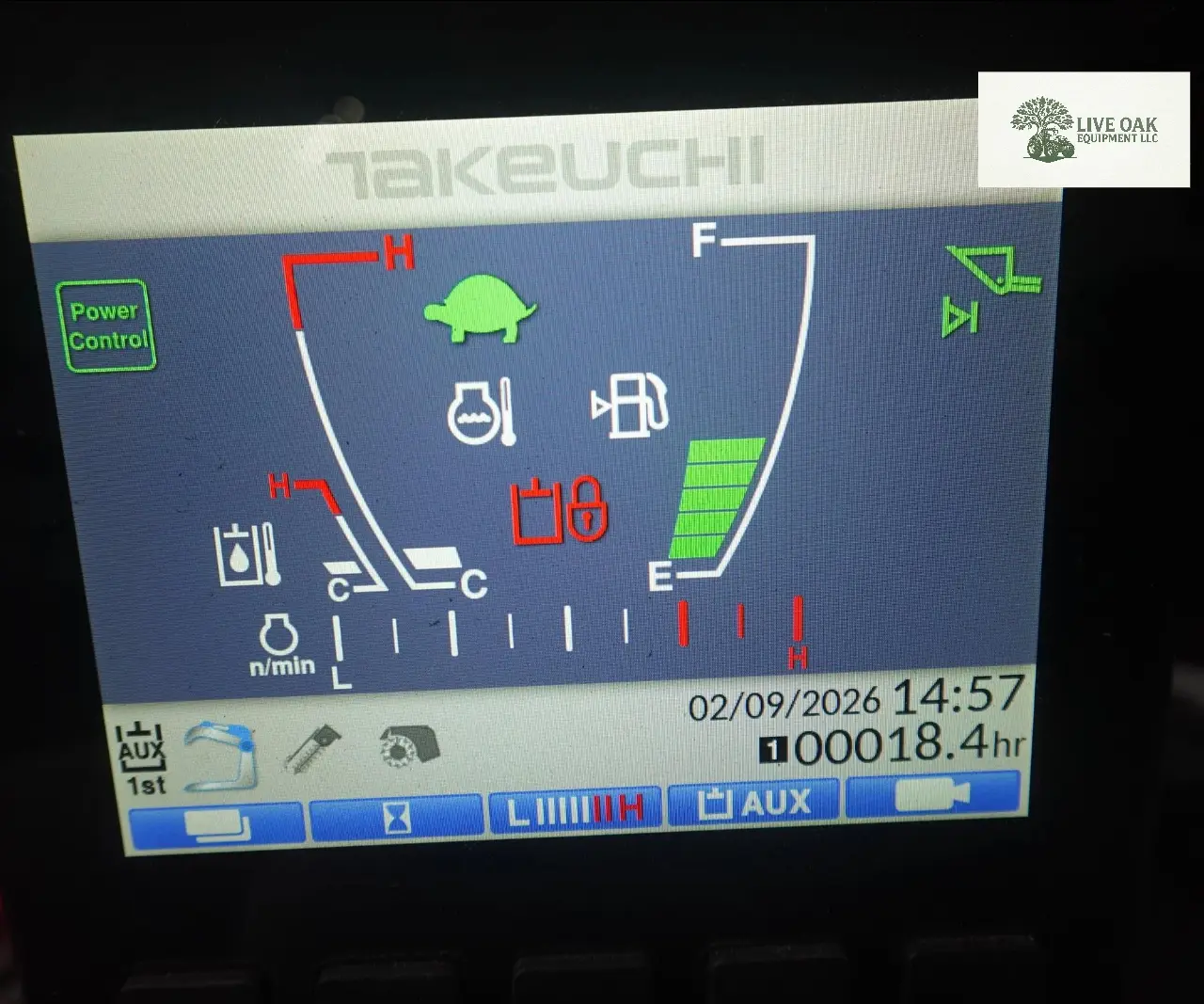

The 2025 Takeuchi TL10V2 is a 74.3 hp vertical-lift compact track loader designed for high performance in construction and agriculture, featuring a 2,522 lbs Rated Operating Capacity (35% tipping load). Key features include a 10 ft 4.8 in hinge pin height, redesigned pressurized cab with a 5.7″ color display, and a quiet-ride track system
